Tray erector - TMG model BQ-2M
Ideal for berries, fruit or small food portions

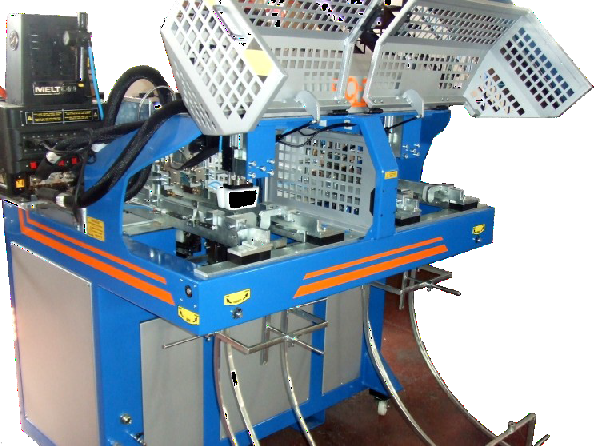

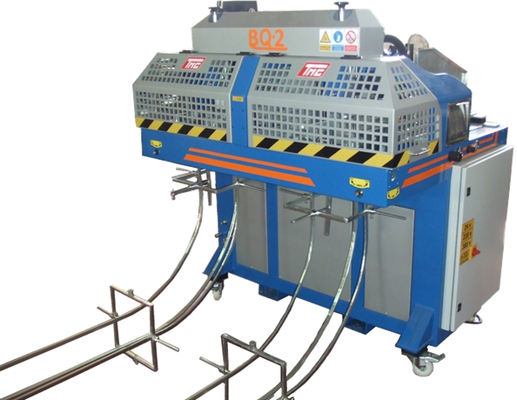

Tamegar's BQ-2M model tray erecting machine is ideal for those customers in the fruit industry
Key Features:
- Produces up to 8,000 trays / hour;
Independent tray forming heads with wide access to tray forming bay.
Centralised machine controls via PLC

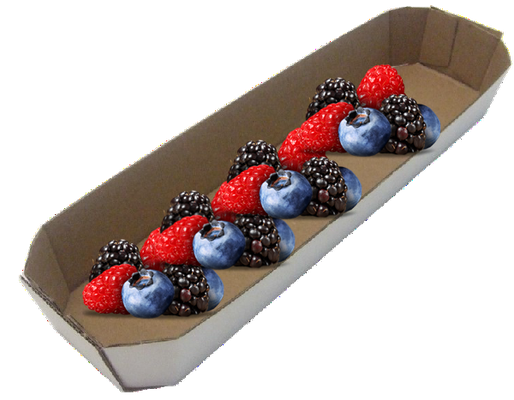

Ideal trays for fruit or small food portions
Video presentation of tray erector - BQ2
Tray dimensions
Maximum & minimum tray dimensions (mm)

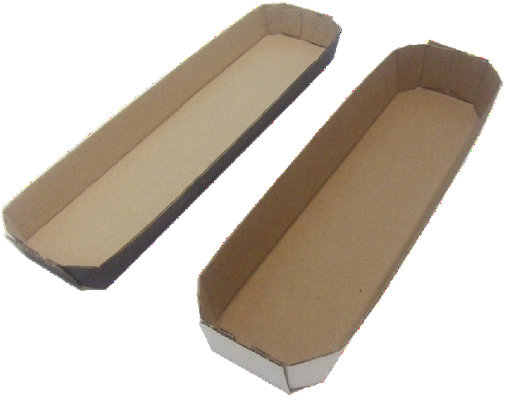

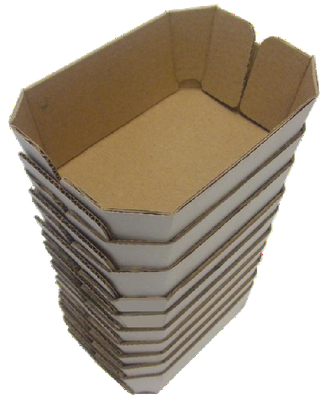

Tray designs
Technical specifications
| MACHINE OPERATION | Electromechanical & pneumatic |
| PRODUCTION | Maximum speed 6,000 trays/hour (3,000 trays per forming head) |
| ADHESIVE SYSTEM | ValcoMelton hot melt unit EC-8 with 5 glue hose exits and central glue distributor |
| MACHINE CONSTRUCTION |
Machine chassis constructed using welded folded sheet steel. Tray forming area constructed using reinforced 15mm steel. |
| FORMED TRAY EXIT SYSTEM | Two tray exit slides |
|
ELECTRICAL ENERGY SUPPLY |
Compressed air and electrical supplyconnection ready to connect with the warehouse |
|
REQUIRED ELECTRICAL
ENERGY SUPPLY |
400 V. 3 phases + N + T
|
|
REQUIRED COMPRESSED AIR SUPPLY |
300 l/min at 6 BAR |
|
MACHINE LENGTH WITHOUT TRAY EXIT CHUTES |
2490mm (L) x 1835mm (W) x 1911mm (H) |
|
MACHINE LENGTH WITH EXIT CHUTES ATTACHED |
4800mm approx |
